• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
• Support megapixel HD network video preview, storage and playback;
• Support search, playback and backup by event;
• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream, and 4 channels playback;
• Support monitor PTZ on preview mode
• Offer CMS for free

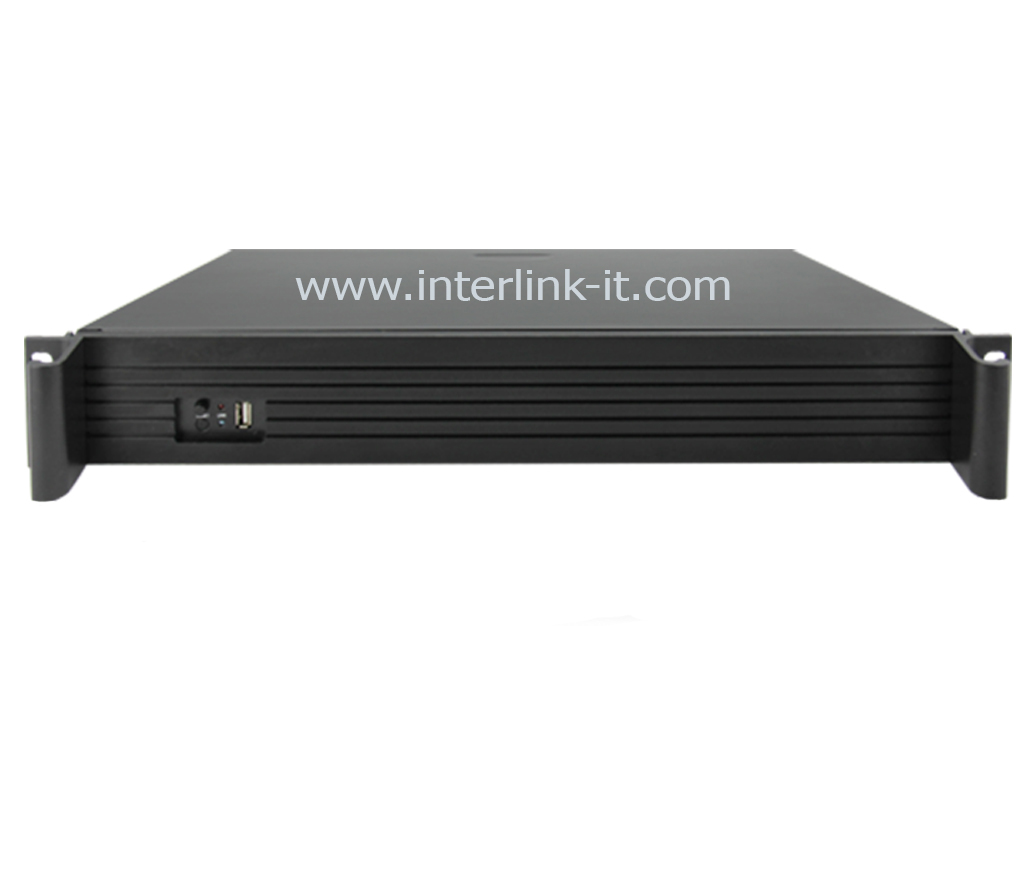

Product Overview
Key Features：
• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR
at any time and any place
• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based
on Onvif, RTSP standard
• Support megapixel HD network video preview, storage and playback;
• Support search, playback and backup by event;
• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,
and 4 channels playback;
• Support monitor PTZ on preview mode
• Offer CMS for free
Main Functions:
1. Preview channel can be switched to other channel randomly without changing the MAC which is convenient for
the project construction;
2. The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters
are more easy and convenient;
3. The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly
under preview and playback modes;
4. Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
5. The recording playback is shown by time bar and different color represents different recording type. It is very
fast and easy to find check the recording;
6. Recording backup can be accurate to second. Any time period of backup is available;
7. The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can
be viewed directly;
8. With 3G, WIFI wireless connection functions;
9. Standard resolution which can be adjusted according to the display device in order to get the best image quality;
10. Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
Technical
|
Operating System |
Embedded LINUX operating system |
|
Image Code Control |
Image code quality adjustable, variable bitstream and constant bitstream optional |
|
Dual Stream |
Each channel can set main stream and sub stream |
|
Video Standard |
1080P(1920×1080)30fps/ 960P(1280×960)/720P(1280×720)30fps |
|
Monitoring Image Quality |
1080P(1920×1080) / 960P(1280×960)/720P(1280×720) |
|
Image Motion Detection |
Each screen can set multiple detection areas and set 6-level sensitivity |
|
Recording Playback Quality |
9ch 960P/720P playback,4ch 1080P/3MP/5MP playback |
|
Region Cover |
Every channel can set 4 cover regions（IPC Support） |
|
Recording Mode |
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) |
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW. network storage and backup |
|
Operation Way |
Mouse, Keyboard |
|
Local Login |
Username and password |
|
Recording Storage |
Local HDD, network |
|
External
Ports |
Video Input |
①25×(1280*960)+sub[720*576]+4Ref.+8Play 25ch 1.3MP IP Camera |
|
②16×1920*1080)+sub[960*576]+4Ref.+4Play 16ch 2.0MP IP Camera |
|
③9×(2048*1536)+sub[960*576]+4Ref.+4Play 9ch 3.0MP IP Camera |
|
④9×(2592*1944)+sub[960*576]+4Ref.+1Play 9ch 5.0MP IP Camera |
|
Audio Input |
25/16ch network audio input |
|
Video Output |
1ch VGA+1ch HDMI |
|
Audio Output |
1ch RCA output |
|
Network Port |
1 RJ45,10M/100M/1000M self-adaptive LAN port |
|
RS485 Port |
Full duplex standard 485 port |
|
USB Port |
1 USB 3.0 port, 2 USB 2.0 ports |
|
Alarm Input |
4ch |
|
Alarm Output |
1ch |
|
Wireless Port |
WIFI |
|
HDD |
HDD Port |
4 SATA HDD port + 1 E-SATA HDD port |
|
MAX Capacity |
Each port supports MAX 4TB HDD |
|
Mobile Surveillance |
Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
Power Supply |
12V6A |
|
Power Consumption |
≤25W（without HDD） |
|
Working Temperature |
-10℃～＋55℃ |
|
Working Humidity |
10％-90％ |
|
Dimension |
Equipment：440mm×360mm×70mm，Packing：460mm×135mm×560mm |
|
Weight(without HDD) |
N.W.：5.7Kg；With packing：6.9Kg |
|
Outside Carton |
4 pcs/carton. 480mm×560mm×575mm；Weight：30 Kg |
|
Installation Way |
Desktop Installation |
